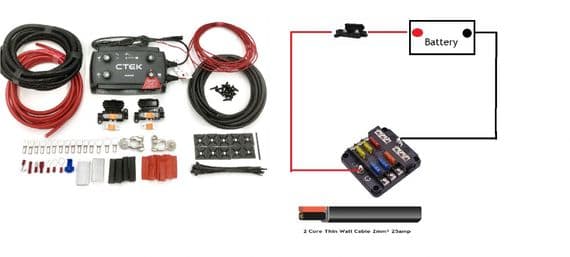

Top quality campervan wiring kit supplied with everything needed to charge a leisure battery

Ctek D250SE 12v 20amp battery to battery charger.

Distribute power via the 6 or 12 way fuse box + twin core cable

This kit contains the following items

Ctek D250SE battery to battery charger + wiring

6 or 12 way fuse box kit + wiring

10 mtrs flat twin core cable 2mm² 25amp

Simply Select kit length from the drop down menu above for the distance between the main starting battery to the leisure battery location

Ctek B2B Charging Kit Specifications:

1 x CTEK D250SE 20amp Charger

1-8mtrs 10mm² 70amp Red Battery Cable

2mtrs 10mm² 70amp Black Battery Cable

5mtrs 1.5mm² 15amp Red optional ignition cable

1 x Pair 8mm Post Type Battery Terminals

2 x Midi Fuse Holders + 4 x 30amp Midi Fuses

1 x Pack Terminals + Heat Shrink

10 x  Cable tie bases

15 x cable ties 150mm

15 X 8x3/4 screws + 3mm HSS drill bit

2 x adhesive pads

1-8mtrs protective conduit to suit 10mm² cable

Wiring diagram

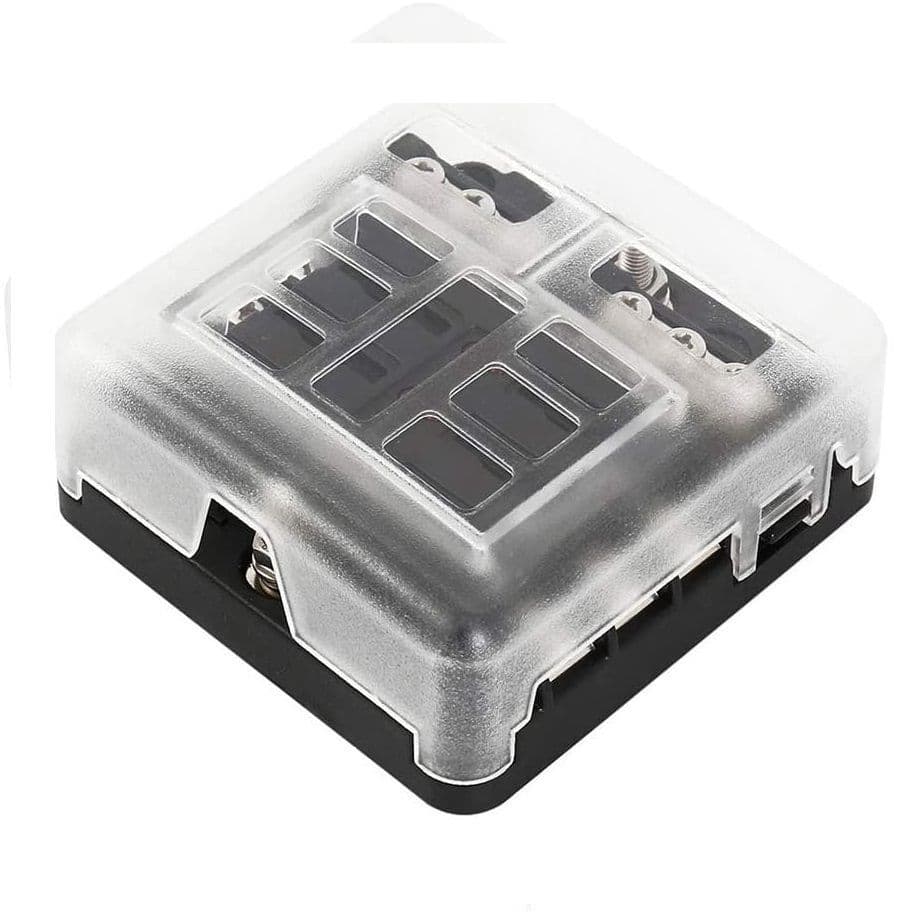

Fuse Box KIt

 1 x 6 or 12 Way Fuse Box

1.25mtr Red 70amp 10mm² Cable

1mtr Black 70amp 10mm² Cable

1 x strip link fuse holders + 2 x 60amp fuses

3 x each 5amp,10amp,15amp & 20amp Blade Fuses

24 x 4mm blue insulated ring terminals

Termianl Pack with Heat Shrink

Flat twin core cable

10 mtrs

Conductor spec: 28/0.30
Cable size: 2 x 2.00mm2 (15 AWG)
Nominal current rating: 25Amps
Dimensions: 3.9mm x 6.5mm
Colour (outer): Black
Colour (inner): Red & Black
